Black Steel
SKU Miro-1
FLUE 150mm

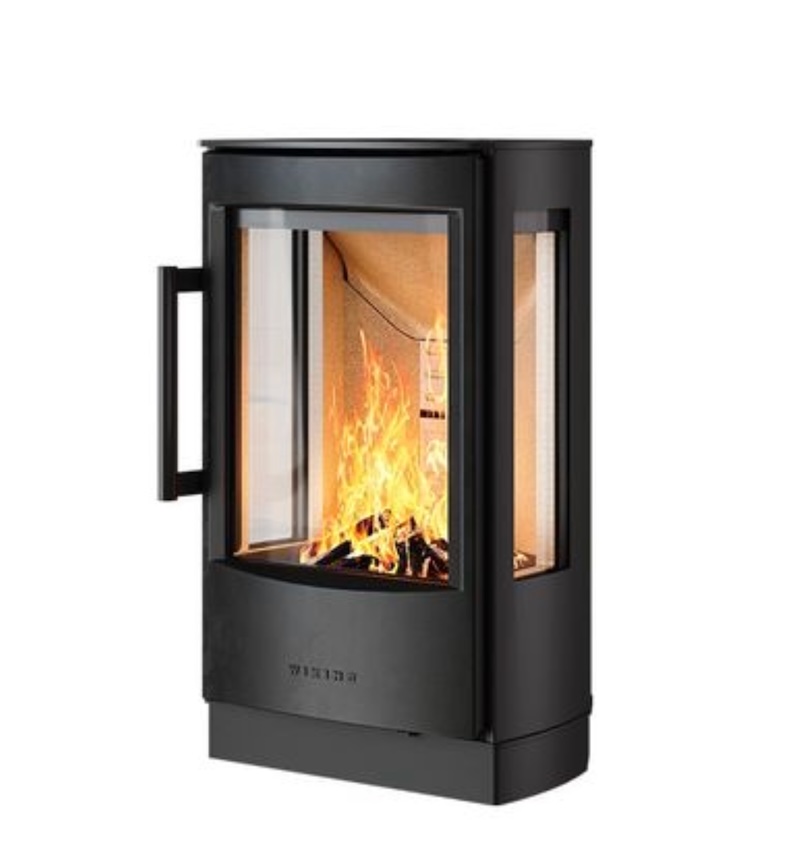

WIKING Miro 1

The Miro 1 reflects modern Danish design with clean lines and balanced proportions. With its compact body, elevated plinth base, and large front and side glass panels, it becomes a stylish focal point while offering a beautiful view of the flames from multiple angles.

The large glass door and side windows create an inviting panoramic flame view, while the discreet handle maintains the stove’s minimalist look. An efficient combustion system delivers clean, effective heating, and the plinth base adds convenient space for storing firewood.

Combustion Air System

Combustion Air System

No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

Learn more →

Combustion Air System

Combustion Air System

×

No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

Today’s homes must be both energy efficient and environmentally friendly, and they are therefore very well-insulated. This makes good sense, but it can be a problem when it comes to your wood-burning stove having a sufficient amount of air – which is important for building a proper fire.

The solution lies in a fresh air system, which ensures a constant flow of air to the wood-burning stove. HWAM’s fresh air system creates air circulation that is almost completely impermeable.

WIKING® Automatic™

WIKING® Automatic™

In a WIKING wood-burning stove, the regulation of air during lighting and re-stoking is managed automatically through the WIKING® Automatic™ device.

Learn more →

WIKING® Automatic™

WIKING® Automatic™

×

In a WIKING wood-burning stove, the regulation of air during lighting and re-stoking is managed automatically through the WIKING® Automatic™ device.

A heat-sensitive bimetallic spring expands or contracts depending on the temperature in the wood-burning stove. When lighting the fire, the damper will be open to ensure that the flames are supplied with the correct amount of air to get the fire started. The following quick rise in temperature will automatically cause the damper to close, thus ensuring clean and efficient combustion. When the fire starts to die out, the damper opens automatically again to allow for new firewood to be added or to let the fire die out.

WIKING® Automatic™ offers many advantages:

  • Better comfort
  • Easier lighting
  • Clean and efficient combustion
  • Minor impact on the environment

Watch the video on the benefits of WIKING® Automatic ™ here ►

Technical data
Energy efficiency class WIKING® Autopilot™
A
WIKING® Autopilot™
Yes
Efficiency (%)
75,0
Nominal heat output (kW)
Smoke outlet (Ø)
5″/6″
Product measurements (cm)
Height
78,2
Width
46,8
Depth
36,9
Combustion chamber
35,0/32,0
Weight (kg)
Steel cladding, c/m door
97,0
Connection measurements (cm)
From floor on a plinth, top
74,0
Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) – additional purchase
Yes
Combustion air system
Combustion system
WIKING® Autopilot™
Distance to combustible materials (cm)
Mantel piece
50,0
Ceiling
50.0
Distance to combustible materials, insulated flue gas pipe (cm)
Behind
10,0
Side
50,0
Sides, in front of the stove
50,0
In front
110,0
Furnishing in front
110,0
Corner, 45°
26,5
Distance to combustible materials, uninsulated flue gas pipe (cm)
Behind
15,0
Side
50,0
Sides, in front of the stove
50,0
In front
110,0
Furnishing in front
110,0
Corner, 45°
26,5
Approvals
EN 16510
Yes
EN 16510 type CA
Yes
BImSchV Stufe 2
Yes
DEFRA Exempt
Yes
ECODESIGN Compliant
Yes

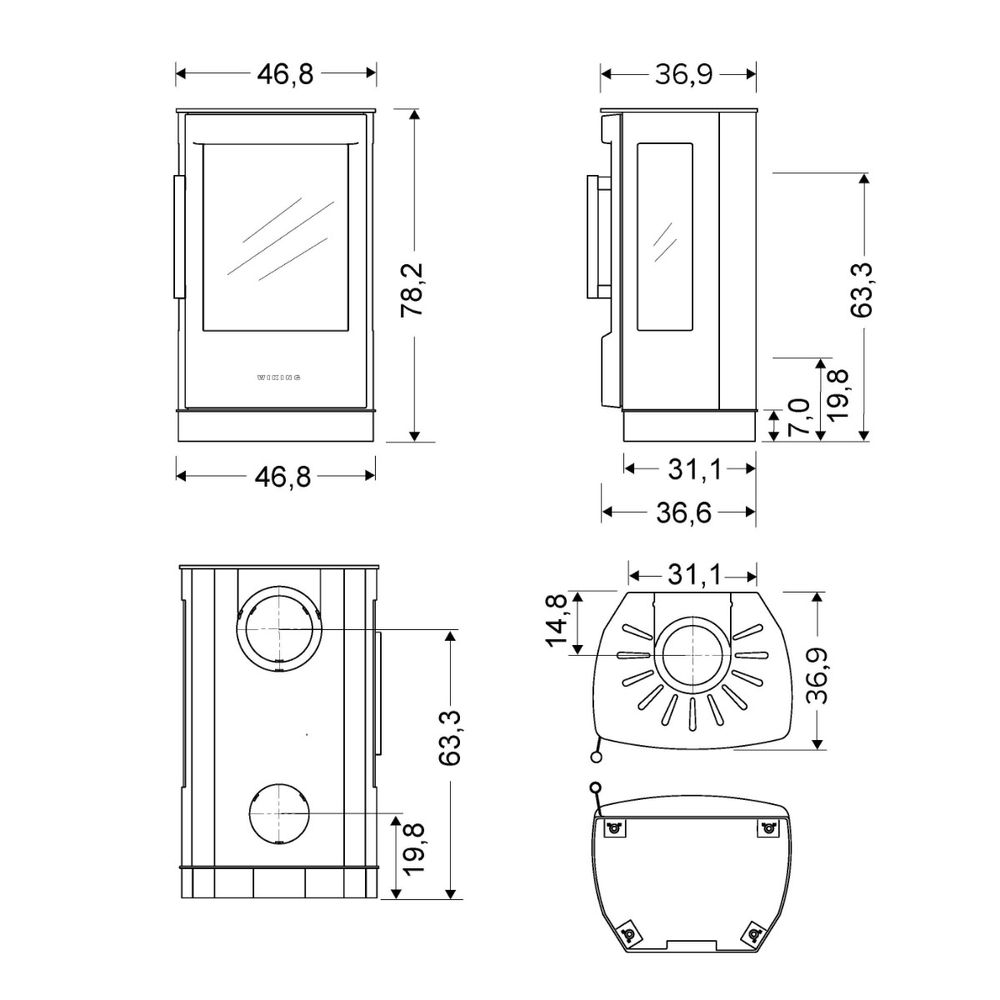

WIKING Miro 1 Technical Drawing
